Southern Pacific Narrow Gauge Railroad |
|
Alico
Dolomite
Mock
Tramway
Swansea
|
|
All material courtesy of Rich McCutchan unless otherwise noted.
See USE NOTICE on Home Page.
|
Southern Pacific Locomotive No. 9 with its auxiliary water tank (SP No. 54) between Owenyo and Keeler (1950)
(Photo courtesy of University of Nevada, Reno - Online Digital Collections) |
SP No. 9 heads north from Keeler in the early morning light.

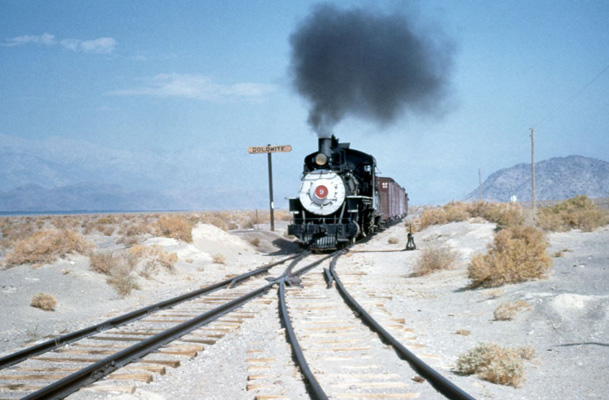

1948 near Dolomite Siding. |
SP No. 9 by Alico Siding in 1953 |
Rock house remains in Swansea along the SPNG in Owens Valley. |
Swansea along the SPNG in Owens Valley. |
Engine No.
18 switches at the Limestone Quarry at Dolomite in 1949. |
Located four
miles north of Keeler, the spur line to the salt mill can be
seen to the right. |
The Saline Valley Salt Mill at Tramway in Owens Valley, 1915. The track in the
foreground connected to the narrow gauge main line. |

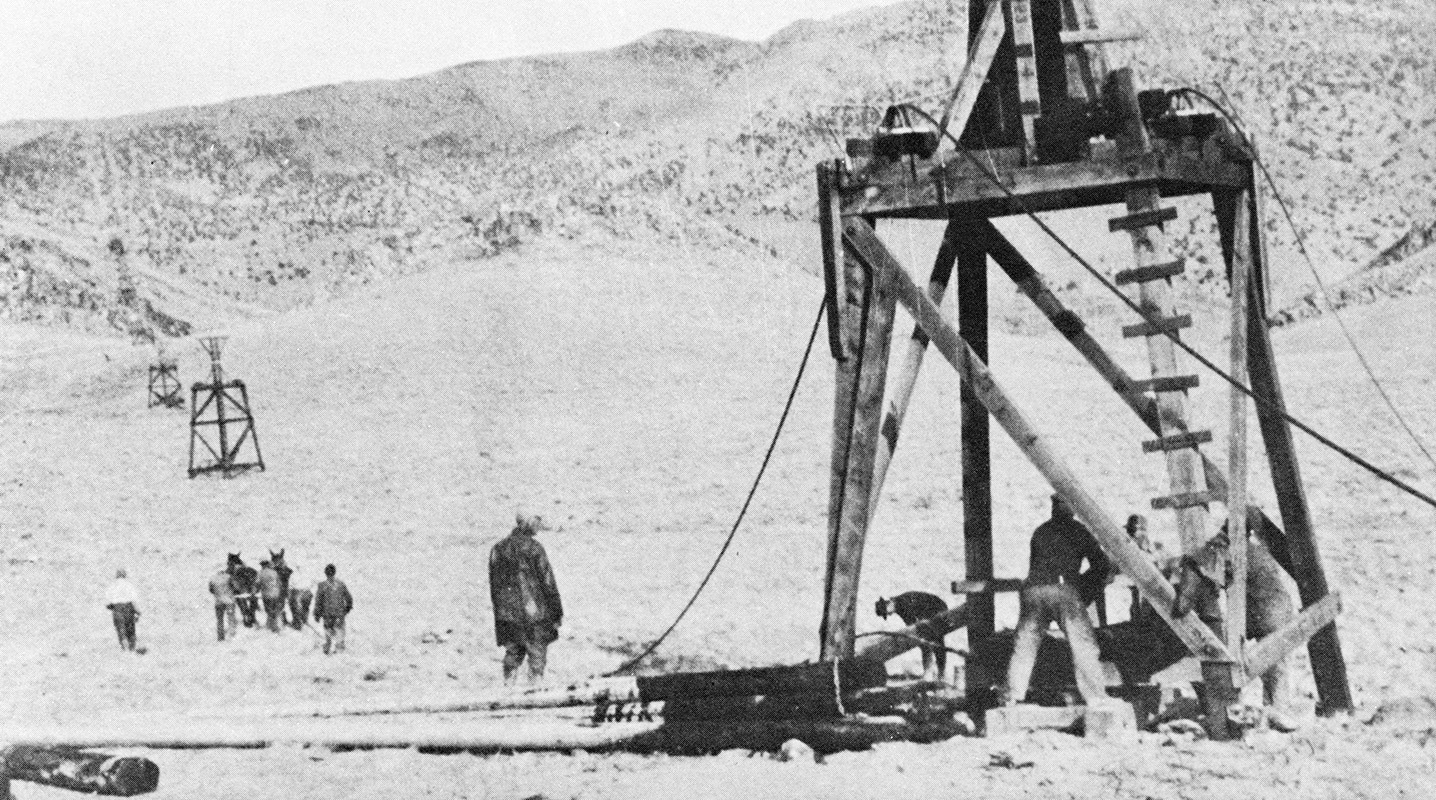

View looking
west from the Saline Valley towards the Inyo Mountains during
construction of the aerial tramway.
|
Failure of the
grip lock (lower wheel and handle shown on the bucket hanger)
to hold the filled buckets on the cables resulted, in part, in
the eventual abandonment of the salt tram in 1930. |
|
Plymouth Model DLC "locomotive" at work near Keeler, CA - 1930 |

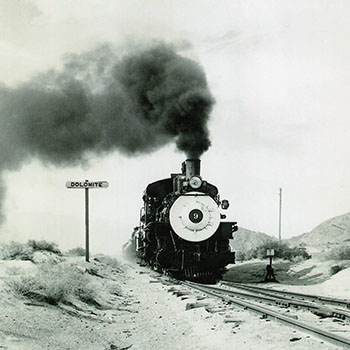

The "Slim Princess" at Dolomite Crossing
(Photo courtesy of Dennis Burke) |
Plymouth Model DLC "locomotive" at work near Keeler, CA - 1930 |
Plymouth Model JL-2
At Keeler both Inyo Development and then Natural Soda Products operated narrow gauge tramways from evaporation beds in the lank to the processing plants. This derelect is still at Keeler.
(Photo courtesy Aaron Paz) |
Plymouth Model FL-2
(Photo courtesy of Drew Simon)
|
|
Per Randy Hess - April 2019
There are three different locomotives in photos above.
I suspect the black and white photo above is at Natural Soda Products, one of two railroad operations out of Keeler (Inyo Development and Natural Soda Products), harvesting various salts from the lake bed.
Natural Soda Products was 3’ gauge… and had 4 Plymouth locomotives:
c/n 1166, Plymouth Model AL-2, 12/5/1921
4-wheel, “friction drive” gas, Continental 3.5 engine, 23 hp, 3 tons
Built for Natural Soda Products
No known disposition
c/n 1611, Plymouth Model DL-2, 12/11/192
4-wheel, gas/mechanical drive, Buda BTU engine, 52 hp, 7 tons
Built for H C Collins, Los Angeles (dealer)
To Natural Soda Products 12/21/1923
c/n 1853, Plymouth Model DLC-6, 10/7/1924
4-wheel, gas/mechanical drive, Climax TU engine, 65 hp, 7 tons
Built for H C Collins, Los Angeles (dealer)
To Natural Soda Products 11/12/1924
c/n 2053, Plymouth Model FL-2, 6/24/1925
4-wheel, gas/mechanical drive, Buda KTU engine, 35 hp, 4 tons
Built for H C Collins, Los Angeles (dealer)
To Natural Soda Products 8/31/1925
The locomotive in the photo is a DLC. The cars are “Steam Shovel Cars” made by a number of manufacturers, including Western Wheeled Scraper.
The locomotive which was at Laws is a weird “Hunt System” loco… it has flanges that run on the outside edge of the rail… the gauge is about 22”…
The locomotive at Keeler is Plymouth model JL from Leslie Salt at at Saltus on Bristol Lake CA (Amboy). It is their No 2, model JDC type 2, 15 ton, c/n 4553, built 7/6/1943
Inyo Development the other company at Keeler had both 3’ and 2’ gauge trackage… they had a former Bodie & Benton locomotive on the 3’ gauge, and apparently a Milwaukee gas locomotive, gauge unknown, seen in a photo.
There was also a 3’ gauge salt harvesting railroad on the SPng at Rhodes. The tracks there went back to Nevada Salt and Borax Company, and were supposedly built with rail from the Candelaria Branch. A new company, Rhodes Alkali and Chemical Company was started in 1928, acquiring the previous company in 1930, building a new plant in 1932, including adding a Plymouth 5 ton FL, c/n 3463 . |
"Carson
& Colorado"
by Lucius Beebe and Charles Clegg
When Steam
Engines Roared in Owens Valley |
OIn the lexicon of the Old West, few names conjure-up more
dreams of glory than that of the Carson & Colorado Railroad.
Henry Yerington and the moneybags of the Bank of California built
it; Lucius Beebe enshrined it; Carl Fallberg satirized it; while
time and the Washoe winds have all but erased its path.
It has been called, and fittingly so, the "Slim
Princess" owing in part to the fact that her rails were
spaced a mere three feet apart. It was also said to have been
built "300 miles too long or 300 years too soon." But
nevertheless, it survived in part even the greatest of the Nevada
short lines ... the famous and fabulously rich Virginia &
Truckee. It was in fact, the V&T and her wealth that financed
the Carson & Colorado, not only providing its northern connection
at Mound House, Nevada, now only a memory; but its visionary
plan of connecting the Carson River with the distant Colorado
River and all the silver and gold towns that would spring-up
between. Originated, planned, pushed, financed and built by the
Virginia & Truckee Railway in the early 1880's, the Carson
& Colorado was all too soon a waif, unwanted and then finally
unloaded on the unsuspecting but all powerful Southern Pacific
... just two months before news of the Tonopah gold boom resounded
across the great basin and over-shadowed the queen of the Comstock
herself, Virginia City.
Ore from Cerro Gordo, Candelaria and Tonopah rolled
over the Carson & Colorado, but never to the extent that
had been hoped. Wells, Fargo & Company's express rode the
rocking cars too, but the big silver and gold camps never materialized.
Struggling through sagebrush, Sierra snows, across Mount Montgomery
Pass and over the alkali desert, the C&C was subjected to
name changes, name calling and partial standard gauging, finally
ending its days as an isolated narrow gauge line in California's
Owens Valley, just on the east side of the lofty Sierra Nevada.
The final years saw Southern Pacific lettered on its cars, but
under flaking paint could be read the names of the Nevada &
California, Central Pacific and Carson & Colorado, while
journal box covers and other metal parts proclaimed them to have
been cast in the huge shops of the V&T at Carson. Still other
cars and engines ended their days on the valley run between Laws
and Keeler, after having served on the likes of the Florence
& Cripple Creek, South Pacific Coast and Nevada-California-Oregon.
Following the turn of the century, the Owens Valley
was robbed of its water by a distant, yet thirsty Los Angeles.
With the loss of water, the ground dried up and cracked. The
once rich mines had already played out and many farmers and ranchers
just quit trying and left the valley. The final years saw the
once grand narrow gauge making thrice-weekly runs down the desert
floor, serving the needs of Zurich, Aberdeen, Kearsarge, Manzanar,
Owenyo and Dolomite in its seventy mile coming and going between
Keeler and Laws. Oddly enough, not one single town boasted a
population in excess of 300 souls, while most could not muster
more than a few dozen citizens on a July election day!
Still the Southern Pacific narrow gauge struggled
through the sand in the desolate yet beautiful valley ... hauling
a mixed consist of borax, talc, soda ash and whatever else its
agents could drum-up to fill the wooden cars. The ranchers around
Laws provided a few carloads of cattle now and then, usually
in the autumn, but no longer did the three and four engine "Stock
Extras" blast up Mount Montgomery Pass and out across the
valley in the shadow of 14,501 foot Mount Whitney. just over
the Panamints was Death Valley, which at 282 feet below sea level
placed the highest and lowest points in the continental United
States within the confines of Inyo County.
When the end finally came in 1960 the amazing thing
was not that a part of the Old West had vanished, but that it
had lasted so long. This then is the story of the Southern Pacific's
Owens Valley narrow gauge. Operating in a land of barren contrasts,
the slim gauge defied economics, geography and progress to become
the last of her breed in the far west. Drifting across the desert
sands, smoking for all who came to watch, trailing a diminutive
and ancient consist, this was the Southern Pacific narrow gauge.
by Mallory Hope Ferrell (from his book "Southern
Pacific Narrow Gauge")
|
Mock dolomite quarry near Keeler
(Courtesy of eBay)
|
The "sagebrush
and sand" country of the C&C.
|

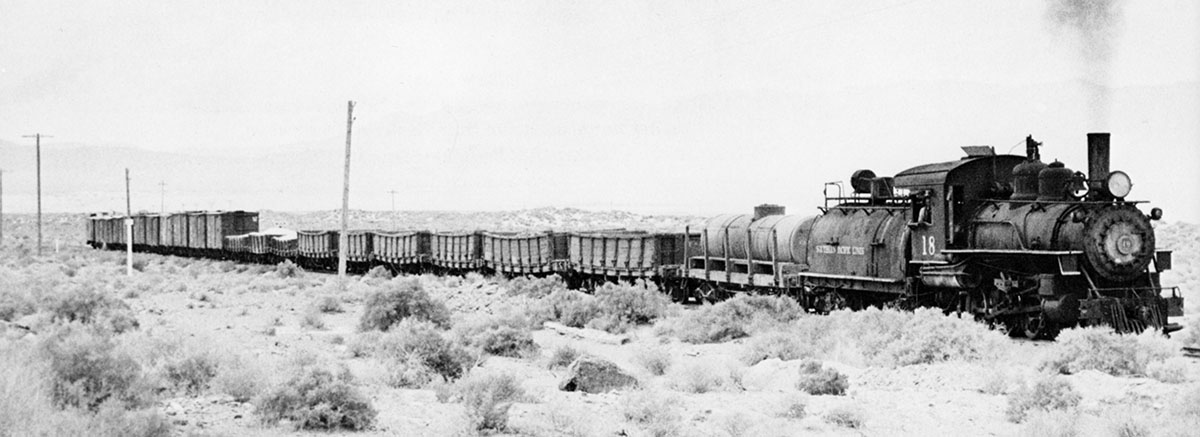

Engine #18 steaming
through Owens Valley. |
07/24
Tramway - Terminus of the Cerro Gordo A. Leschen & Sons Rope Co. Aerial Tramway
(For more Tramway photos click HERE and HERE)
(Courtesy of Duane Allen Ericson) |
"The
Slim Princess"
by Mallory Hope Ferrell
Carson & Colorado
[Photos
curtesy of Bob Pilatos] |
|
